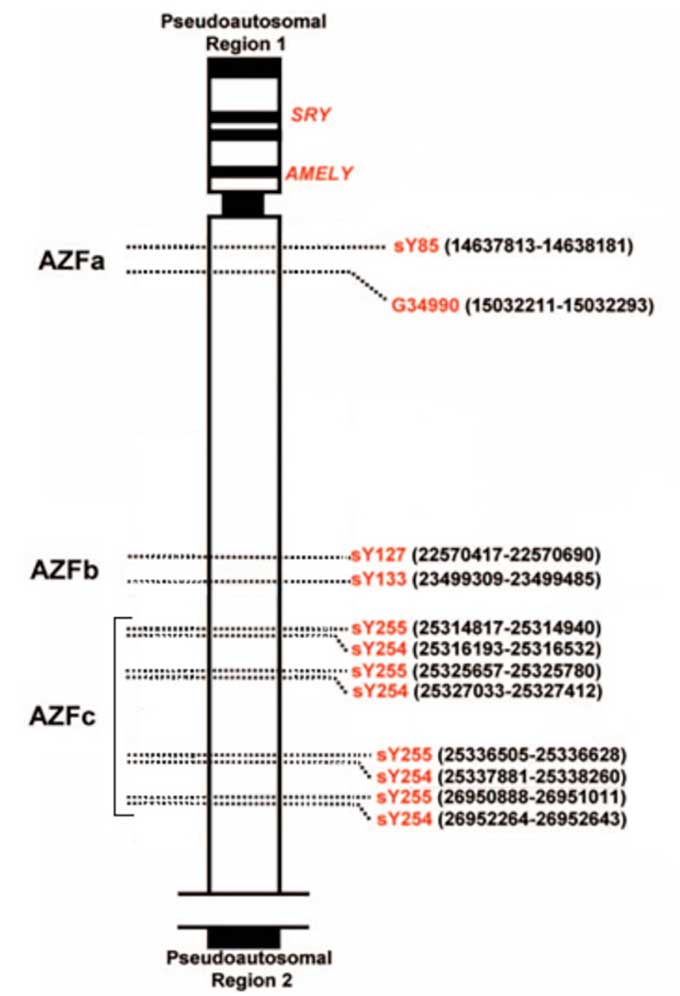

Figure 1. Location of the Primers used for the multiplex PCR, in the Y chromosome. Modified scheme from Kozina et al. (2011). On the left side the AZFa, AZFb, AZFc regions can be identified. On the right the union sites for the primers are identified in red and their genomic position is shown in black.
